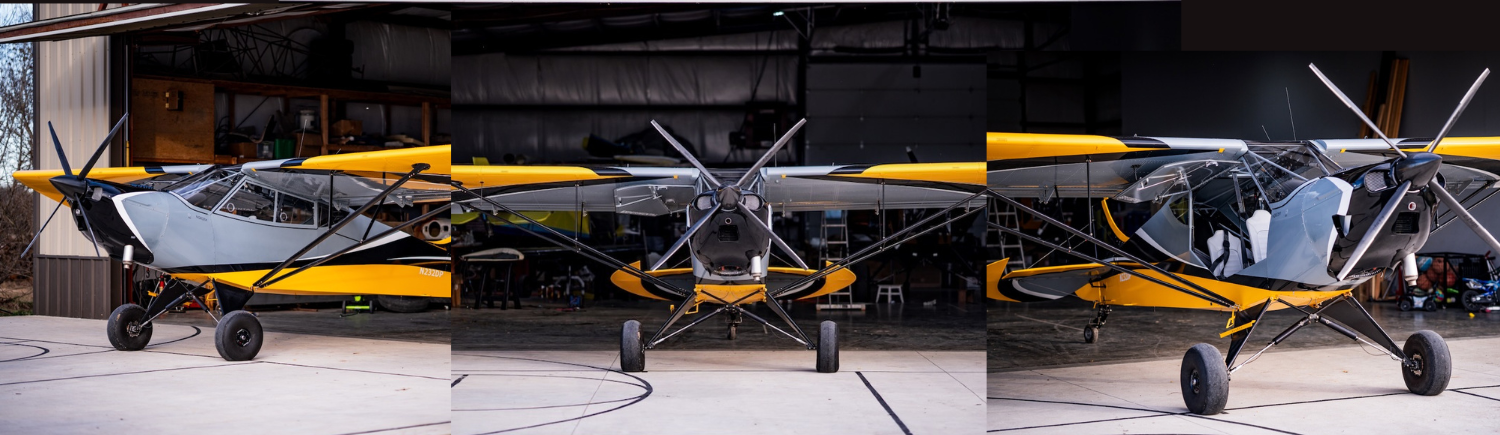

YOUR NEW NORDEN AIRCRAFT
Discover the Joy of Building Your Own Zlin Norden
Embark on a journey to create your perfect adventure aircraft with our interactive configuration tool. Customize every detail of your Zlin Norden to suit your unique flying style and preferences. From engine choices to interior finishes, the possibilities are endless. Start building your dream today and experience the ultimate in backcountry freedom.
STANDARD EQUIPMENT FEATURES
FIREWALL FORWARD
- Rotax 915iS Engine
- Spin-On Oil Filter
- Dual generator
- Dual electronic ignition
- Carbon engine cowling
- Oil service door in cowling
- 80″ 4-blade E-PROP, ground adjustable propeller with carbon spinner
- Exhaust muff cabin heater
FUEL SYSTEM
- Two 13 gallon wing tanks (26 gallon capacity)
- Fuel shut off valve
- Dual fuel pumps
- Header tank
- Fuel sight gauge in wing roots
- Fuel filter and low point drain
- Large, locking, stainless fuel caps
- Gascolator, high pressure
WINGS & TAIL
- All metal wing with push rods & ball bearing controls
- Wings tested to 1,800 lbs
- Dual slotted fowler style flaps (75% more than PA-18)
- Electric-powered, leading edge wing slats
- Extended surface, Frize type ailerons (40% more than PA-18)
- Carbon droop wing tips
- Extended surface elevators
- Gap seals installed between stabilizer & elevators
- Vortex generators on underside of horizontal stabilizers
- PA approved tail strut rods
- Improved, Piper PA-18 style, electric jackscrew stabilizer trim system
AIRFRAME
- All steel 4130 frame tubing with internal corrosion protection
- Dacron covering on the fuselage
- Single paint color (white, blue, gray, black, red, or orange)
- Dual aft fuselage ground-maneuver handles
- Aft baggage access door
STANDARD PANEL
- Electronic airspeed, altimeter & vertical speed
- Kanardia EMSIS engine monitoring with alerts
- Trim indicator
- 25” Trig VHF radio with flip-flop, monitor & intercom
- 25” Trig transponder w digital readout
- Lane A/B Status Lights
- Master switch
- Circuit breakers
- Carbon instrument panel
FLIGHT CONTROLS & INTERIOR
- Dual flight controls
- Elevator trim
- Dual toe brakes
- Pilot & co-pilot push-to-talk in control sticks
- Removable co-pilot stick
- Pilot & co-pilot standard headset jacks in wing root
- Dual voice activated intercom
- Adjustable seats with fabric upholstery
- Dual 4-point safety harnesses
- Cabin heat control
- Dual 12V auxiliary outlet
- EarthX ETX900 lithium ion battery
- Cabin fresh air vents
- Rear cabin cargo tie down points
- Overhead skylight for entire cockpit
- 5-piece plywood floors
- Door key lock
LANDING GEAR
- 6” Goldfren high torque wheels with single calipers, dual master cylinders, stainless brake lines
- Covered, extended, reinforced landing gear system with bungees
- 23” Aero Classic Bushtires
- Matco 8” tail wheel system mounted with reinforced tail spring on heavy duty tail structure
SAFETY FEATURES
- Kannad 406 Integra ELT (Built-In GPS)
- Visual fuel gauges
- Complete 4130 reinforced fuselage
- Ignition backup battery system
- Leading edge slats
CONFIGURE YOUR ZLIN NORDEN
CURRENCY & PRICING
All aircraft configuration prices are stated in Eurodollars (EUR).
The on-page currency converter shows an estimated value in U.S. Dollars (USD) using today’s EUR/USD exchange rate and is for guidance only.
Your final sales price will be quoted in Eurodollars by Zlin Aviation USA. The actual USD amounts you pay will depend on the EUR/USD exchange rate our bank uses on the date each payment is processed.
PAYMENT STRUCTURE
Payments are made in four equal installments of 25% of the total Eurodollar price, due at:
- Order placement (initial payment).
- Start of production (second payment).
- Mid‑production (third payment).
- Aircraft completion (final payment).
All sales are final. Additionally, once received, payments are non‑refundable.
